Sample Inspection

Sample inspection Systems

All-in-one systems.

One-touch verification.

Trusted results.

Before you ship or pass product for downstream processing, you need to ensure it’s right. The Metron™ platform supports any of LaserLinc’s measurement technologies: Use a laser micrometer for checks of diameter, ovality, and length of a product profile; ultrasonics for wall thickness and concentricity; or laser-line triangulation for surface defects and other dimensions. Metron-based systems ensure fast, reliable, and reproducible results.

Close the validation loop.

By using the same precision non-contact technologies for post-process verification as in-process measurement, results can be associated with and verify dynamic in-process measurements. Assure product quality at the source by closing the validation loop with the UltraLinc™ option.

Automate quality control to streamline workflows.

Uniquely Adaptable

Vertical and horizontal configurations, a mobile base, part holding options, choice of technology, a wizard for complete profile definition, and the Total Vu™ HMI ensure usability for any application.

Trusted Results

Intuitive, error-free operation. One click to scan part profile, verify dimensions of interest, identify defects, accept or reject, log data, and report.

Horizontal Metron

Metron close-up

Vertical Metron

Simply automate it.

PDF



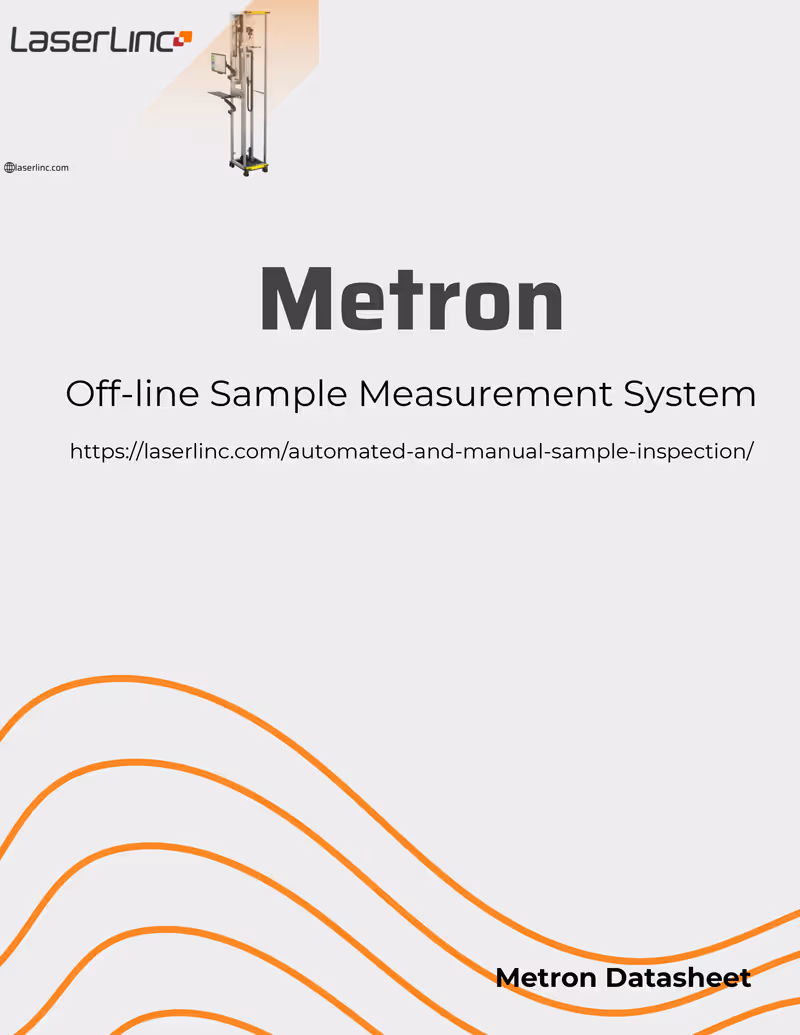

Metron Sample Inspection

Datasheet

Action is what counts.

Ask for a virtual demo using your sample.

Request Demo

Turn-key, all-in-one.

Fit for purpose.

Trusted results.

BenchLinc™ variants include -V for simple manual diameter and ovality (with a Triton™-series laser micrometer) checks, -OD for checking diameter at multiple locations around a sample tube, wire, or other product; -OD/ID for checking diameter, ovality, material thickness, and inside diameter of tube and hose samples; and -UT for checking wall thickness and concentricity of tubing, especially for metals like nickel titanium (NiTi), frequently used to make stents.

Like Metron systems, BenchLinc systems are often used to verify dynamic in-process measurements, closing the validation loop.

Unique quality control for wall thickness.

Automate inspection.

BenchLinc OD/ID has an integrated load cell to ensure operator-independent results. It uses specially designed mandrels to support the samples for smooth, automatic sample rotation, and reliable results. Replaces dial indicators, hand mics, and other inferior systems.

Full-length inspection.

BenchLinc UT has a unique UltraGauge™ fixture for measuring cut-to-length tubes. Check wall thickness and concentricity using precision ultrasonics. With a Triton laser micrometer, add diameter, ovality, and inside diameter to verify the entire tube profile.

Easily check OD and ovality.

Automate it.

Get a detailed profile of your sample with a BenchLinc OD system. Define the inspection cycle: Up to 100 checks at a user-defined angle interval. Easily place tube, wire, or other product samples using the unique spring-loaded chuck. Automatic rotation, statistics, and tolerance checking take care of the rest.
